Custom cell Style |

|
Custom cell Style |
|
Custom cell style allows the user to add UI parts in the cell. This will allow the user to customize the cell as per the requirement.
Property |
Description |
Name/Identifier |
This provides unique identifier of the cell. |
Background Color |
User can set the background color of the cell. |
Height |
User can set height of the cell. |
Cells |
Click on Edit button to edit the cell. User can add/remove UIparts or modify their properties on the cell. |
Accessory Type |
Select Accessory Type which is displayed as button on the right side of the cell. The options available are : "Indicator", "Button" or "none". |
On Tap Accessory Button |
On Tap Accessory Button is a function/event attached to the cell that acts as trigger to launch the actions. To know more about Functions Click here. The function/event will occur when the user clicks only on the provided accessory button. |
On Tapping Row |
On Tapping Row is the function/event attached to the cell that will occur when the user clicks anywhere on the cell. |
On Flick Cell (Right to Left) |
On Flick Cell is the function/event attached to the cell that will occur when the user flicks (slight movement of UI on touch) the Cell from Right to Left. |
On Flick Cell (Left to Right) |
On Flick Cell is the function/event attached to the cell that will occur when the user flicks (slight movement of UI on touch) the Cell from Left to Right. |
Steps to create Custom Cell:
1) Click on Edit(0) button of cells.
2) Edit cell window opens.
3) Drag and drop UI elements on the cell and close.

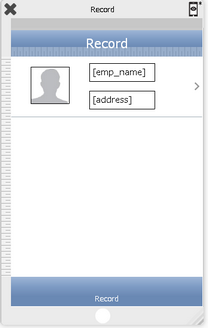

Page Editor View:
Preview View:
