Append Text action allows the user to append the data (text). To know more about this action please follow the steps given below:

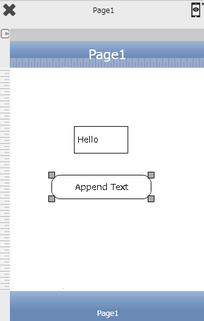

Step 1: Open a Free Layout Page.

a.Drag a TextField and a RoundButton UI part and drop it on the Page.

b.Browse to the "Functions" section on "Properties Palette window" of RoundButton for applying actions.

c.Click on the corresponding Edit(0) button of the Function on which user wants to apply the Action.To know more about the Functions click here.

mobilous_appexe_npe_myproject_Actions_category_mainvalue_appendtext_editor

Step 2: Click on "Add" button on the Actions window to add an action.To know more about actions click here.

mobilous_appexe_npe_myproject_Actions

Step 3: Select the Actions category as “Main Value”.

mobilous_appexe_npe_myproject_Actions_category1

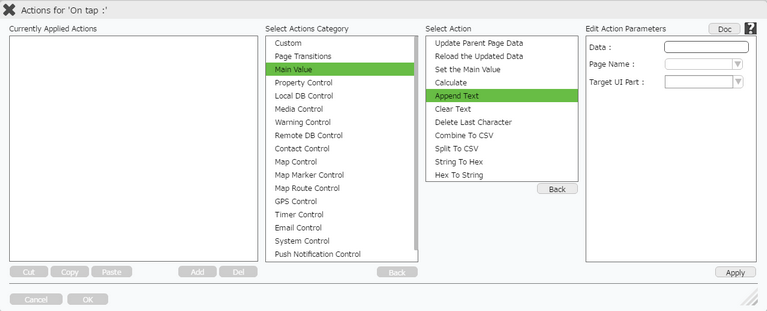

Step 4: Click on the "Main Value" and then click on “Append Text” action.

mobilous_appexe_npe_myproject_Actions_category_mainvalue_appendtext_actions

Click here to know about "Doc" Button.

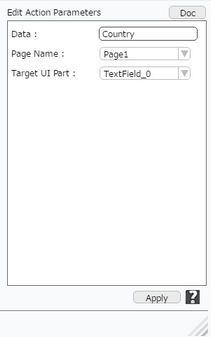

Step 5: Enter Action Parameters:-

Parameter	Description
Data	Enter the Text to be appended e.g "Country".
Page Name	Select Page Name where Target UI Part is present e.g "Page1".
Target UI Part	Select the Target UI Part e.g "TextField1" as shown in Image below. Note: User can Type or select the Target UI Part from the Drop Down.

mobilous_appexe_npe_myproject_Actions_category_mainvalue_appendtext_actions_setting

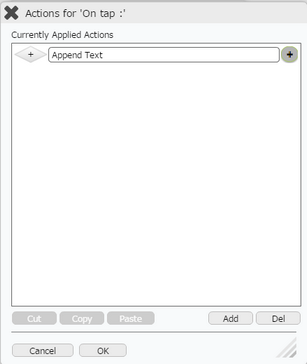

Step 6: Click on "OK" button if the user doesn't want to add more actions.

mobilous_appexe_npe_myproject_Actions_category_mainvalue_appendtext_apply

Note: Define condition if required, by clicking on "+" Condition Button on the left. Click here to know more.
